PIPE BEVELING MACHINES
Mini Lathe
RANGE: 72 – 406 mm / 02.80" - 16.00"
Powerful machine with powerful 2.2kW (3 HP) motor, gearbox and innovative locking system.
One mandrel covers entire tool range.
Most powerful machine within this size range on the market today. Utilizes a powerful 2.2kW (3 HP) pneumatic motor that is entirely engineered and manufactured by KRAIS for the largest end prep systems.
- Mini Lathe comes with one of 3 gearboxes as a standard. It gives a wide choice for operator.
- No need for extra gearbox that reduces the RPM and multiplies the torque - it comes as standard!
- Innovative 6-point locking system assures maximum stability during all machining operations.
- Self-centering 2,75” one piece locking shaft with build in jaws, eliminates the issue of broken or loosening retaining springs and O-rings.
- Only one mandrel and 10 Jaw sets needed to cover machines entire range.
- Wide clamps produce superior clamping force for chatter free end preps.
- Fully portable for on-site and Fab-shop work.

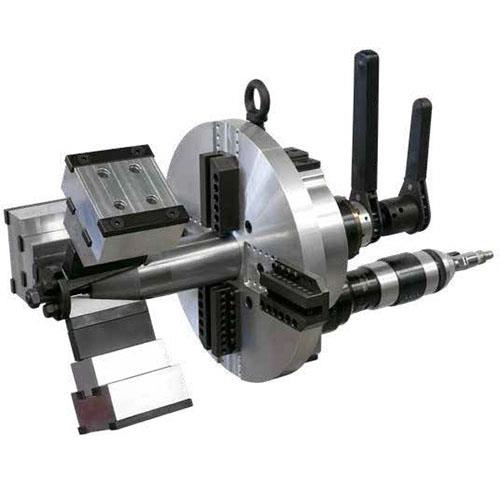

Pipe Lathe
RANGE: 180 – 609 mm / 07.00" - 24.00"
Machine with 3.5 HP pneumatic drive. Variable speed control. Innovative locking system. One mandrel covers entire tool range.
Powerful 3.5 HP pneumatic drive generating 12500 Nm (9259 ft. Lbs.) torque on the cutter blade.
Variable speed control 0-5 rpm.
- No need for extra gear box that reduces the rpm and multiplies the torque. It comes as standard!
- 150 mm (5,9”) One piece locking shaft with build in jaws, eliminates the issue of broken or loosening retaining springs and O-rings.
- One mandrel covers complete working range.
- Innovative 6-point locking system assures maximum stability during all machining operations.
- Only one mandrel and 6 Jaw sets needed to cover machines entire range.
- Self-centering shaft with build in jaws.
- Wide Clamps produce superior clamping force for chatter free end preps.
- Fully portable for on-site and Fab-shop work.
